Notification functionality integration into camunda wfls

Goal

As a User and Admin I want to get notified in OMN Message Client when Workflows fail or succeed

Acceptance criteria

A notification component should be introduced which accepts the following config keys

ext.notification.default.level (defines for which type of event notification will be sent)
- ERROR, WARN, INFO
- Default: WARN
ext.notification.default.from.application
- The "Sender Application" or "Sender Programm"
- Default: Camunda
ext.notification.default.from.plugin
- The "Sender Plugin"
- Default: The ProcessDefinition Key (e.g. "ai-imagetagging")
ext.notification.default.to.users (user)
- define 1.. n user which will get the message in messageclient
- can be combined with roles
- Default: The username which started the workflow
ext.notification.default.to.roles (role)
- define 1.. n roles which will get the message in messageclient
- can be combined with users
- Default: empty
ext.notification.default.subject.error
- defines the subject of the error message
- can work with placeholders (see placeholders)
- Default: %processDefinitionName failed
ext.notification.default.subject.success
- defines the subject of the success message
- can work with placeholders (see placeholders)
- Default: %processDefinitionName failed
ext.notification.default.body.error
- defines the body of the error message
- can work with placeholders (see placeholders)
- Default: see here: https://apollon-cloud.atlassian.net/wiki/spaces/OPD/pages/92210263/Camunda+Notifications
- Note: Should be of type "CLOB" and be configured in "UI Admin" (enable read/write). Otherwise newlines will not be possible.
ext.notification.default.body.success
- defines the body of the success message
- can work with placeholders (see placeholders)
- Default: see here: https://apollon-cloud.atlassian.net/wiki/spaces/OPD/pages/92210263/Camunda+Notifications
- Note: Should be of type "CLOB" and be configured in "UI Admin" (enable read/write). Otherwise newlines will not be possible.
ext.notification.default.parameters
- list of config parameter keys which should be included as parameters in the message. These will be listed in separate "Parameters" View of MessageClient
- Default: empty

Replace ".default." by any other string to introduce a new notification config.

Placeholders (for subject and body)

%relatedObjects (in case of asset list of related asset file names, in case of products list or related product names
%processDefinitionName
%processDefinitionKey
%processDefinitionId
%processDefinitionVersion(Camunda version number which increase for every deployment of the same BPMN)
%processDefinitionVersionTag (Our VersionTag string set in BPMN XML, e.g. "5.10.0")
%processInstanceStartDate
%processInstanceEndDate (will be "NA" for now as our instance is not yet completely finished when we send the message, means: our listener which sends the message is invoked shortly before the WFL is completely finished)
%processInstanceDuration (will be "NA" for now as our instance is not yet completely finished when we send the message, means: our listener which sends the message is invoked shortly before the WFL is completely finished)
%technicalMessage (the message from thrown exception)

Message parameters

only message parameters which are listed in "ext.notification.parameters"

ow 560 3

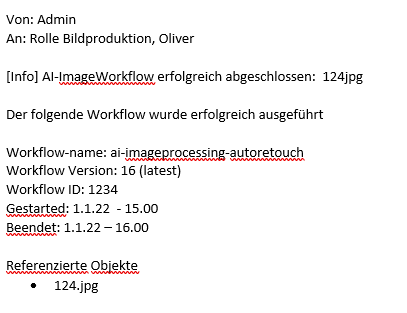

Example for message (success) - example workflow AI - Image

ow 560 4

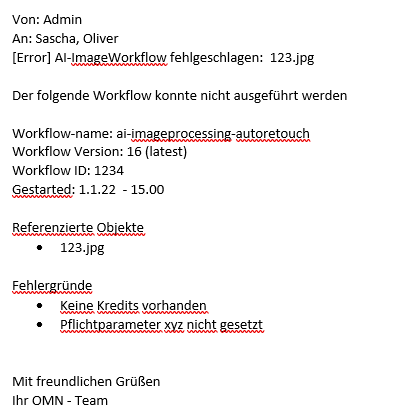

Example for message (error) - example workflow AI - Image

ow 560 5

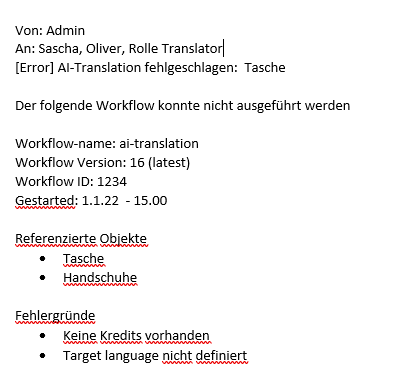

Example for message (error) - example workflow AI - Translation

ow 560 6

Usecases

the user is going to be notified if a camunda process was executed successfully (especially relevant for async processes)
- eg. AutoRetouch delivers result after several minutes
the user is going to be informed if camunda process is running into error (user understands the reason) eg
- invalid api key
- not enough credits
- file format not supported
- etc

Notes

With this feature every asynchronous workflow should by default send an error notification in case of an error. Asynchronous means: you get a green toaster in UI immediately but the workflow is not yet finished (continous processing asynchronously in background). You can for example trigger an error by trying to execute AutoRetouch on a PSD file (which is not supported) or by removing a required configuration key. To enable notifications in case a workflow completed successfully you need to set the 'ext.notification.defaut.level' to INFO.
