IDP Login Configuration

The IDP (Identity Provider) login refers to the process of authenticating a user via an external service that manages identities.

The user can log in with an account from an external identity provider, e.g. Azure AD.
This login approach needs to be configured in Keycloak backend depending on the requirements of the customers.

OMN does not manage the authentication and profiles of the IDP users since they are external identities, but the user could map them to work with OMN smoothly.

Currently, the following mappings are supported:

Mapping Activation for OMN Login (Mapping the activation state)
Mapping IDP User Profile
Mapping IDP User Groups

According to the requirements of the customers, the IDP logins could be configured in the keycloak admin console. Keycloak supports both: OpenID Connect and SAML protocols.
This guide will focus on the OpenID Connect protocol.

It needs the administrator access to the keycloak admin console for configuring the IDP logins. The credentials could be found in the keycloak.env file from the OMN server.

Furthermore, access to the MS Entra Admincenter (e.g. as Global Administrator) is required.

IDP Configuration Example - Azure AD

To configure an IDP login with Azure AD, two setup steps are necessary: with the Microsoft Entra Admincenter (Azure AD) and the Keycloak Admin Console.

The steps in the following chapters should be followed.

Microsoft Azure AD

Log in to your admin console and navigate to the Applications section:

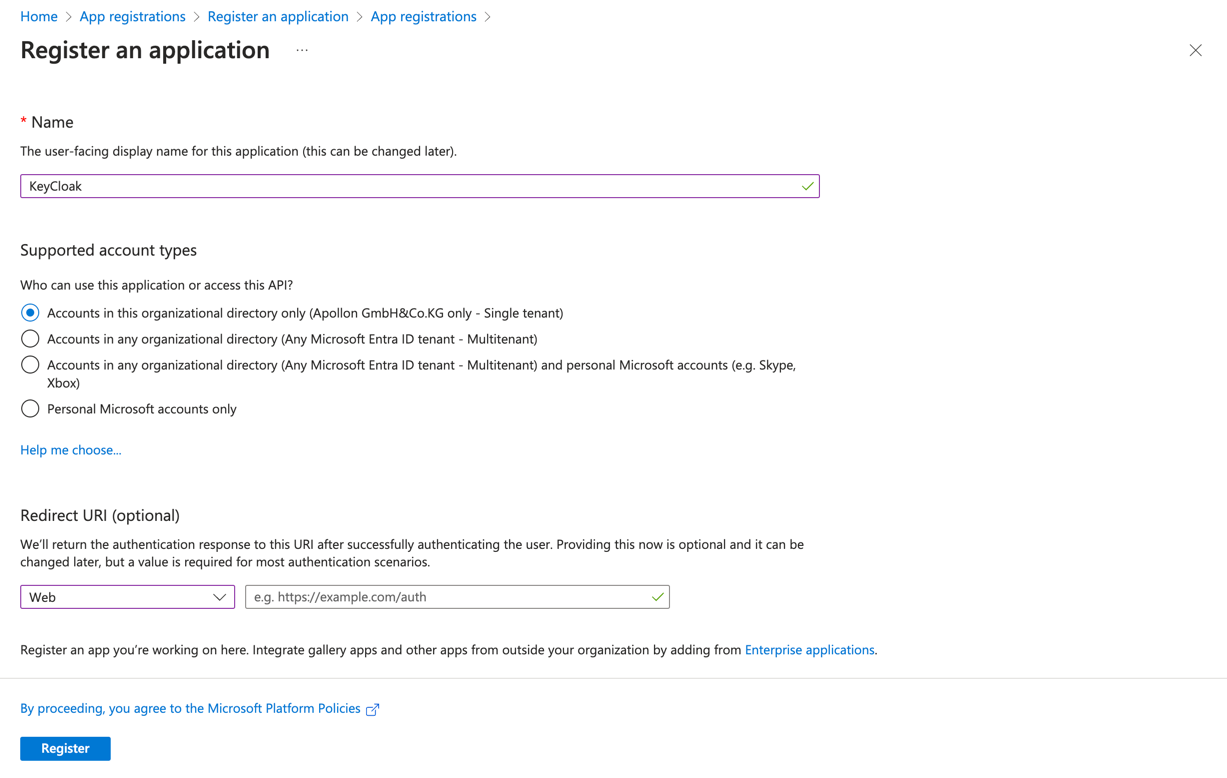

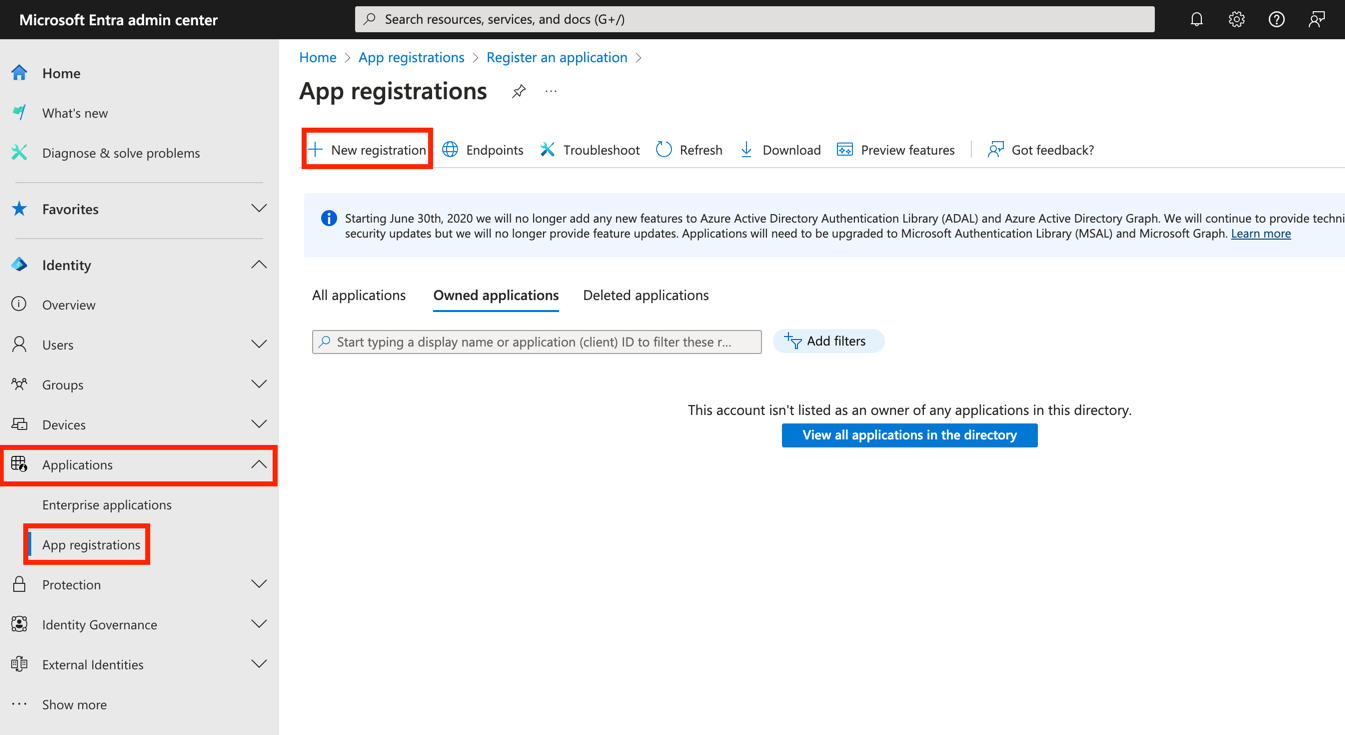

Select Applications → App Registrations → New registration
Provide a name for the application you are registering and select the account type that you would like to be supported → single-tenant.
Then click the register button.

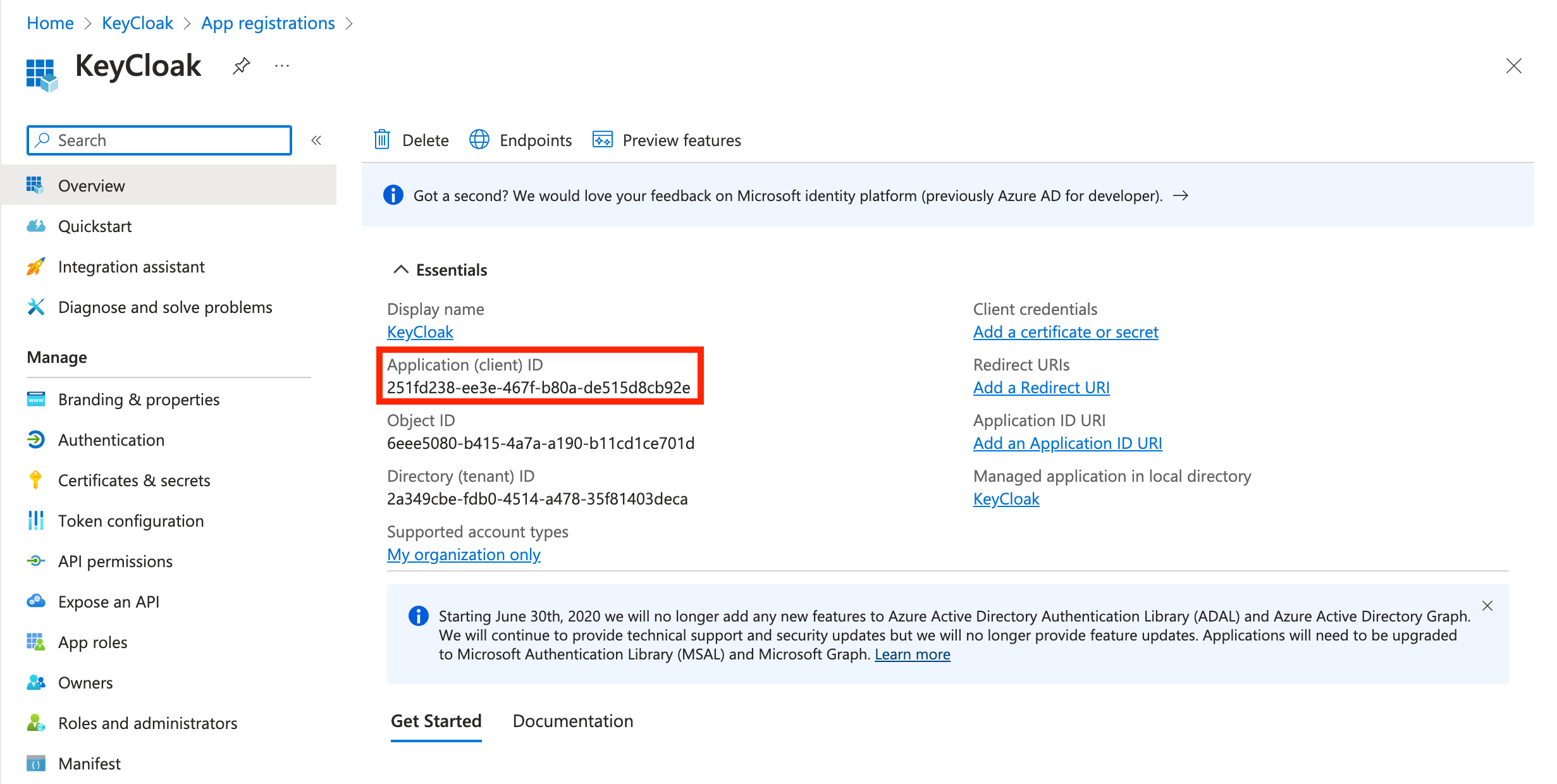

After you have registered your application, you will be returned to the Application registration’s overview page.
You need to save your Application (client) ID, since you will need it later.

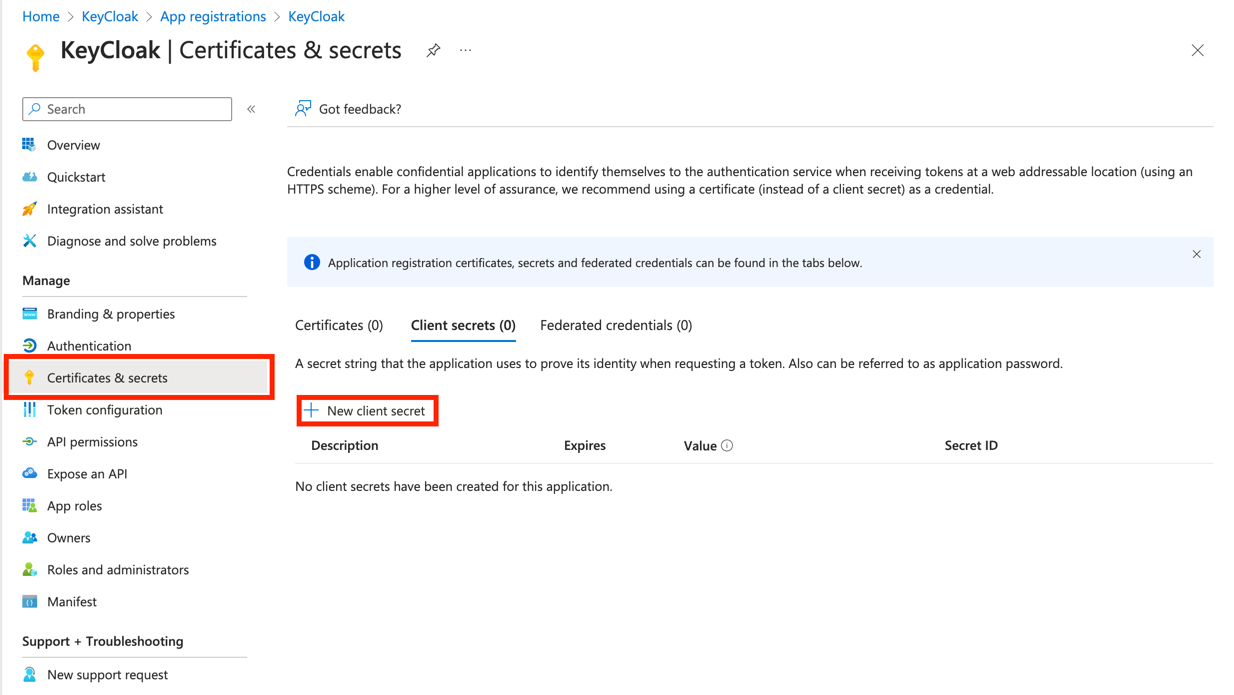

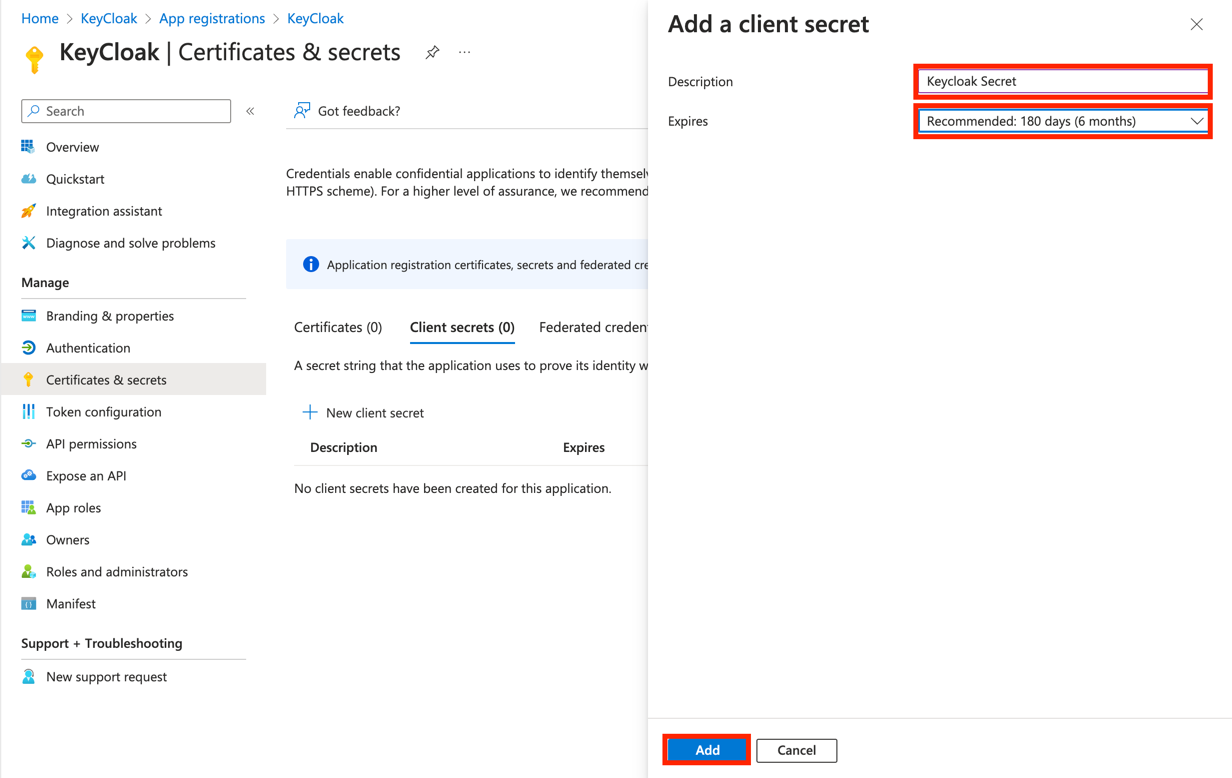

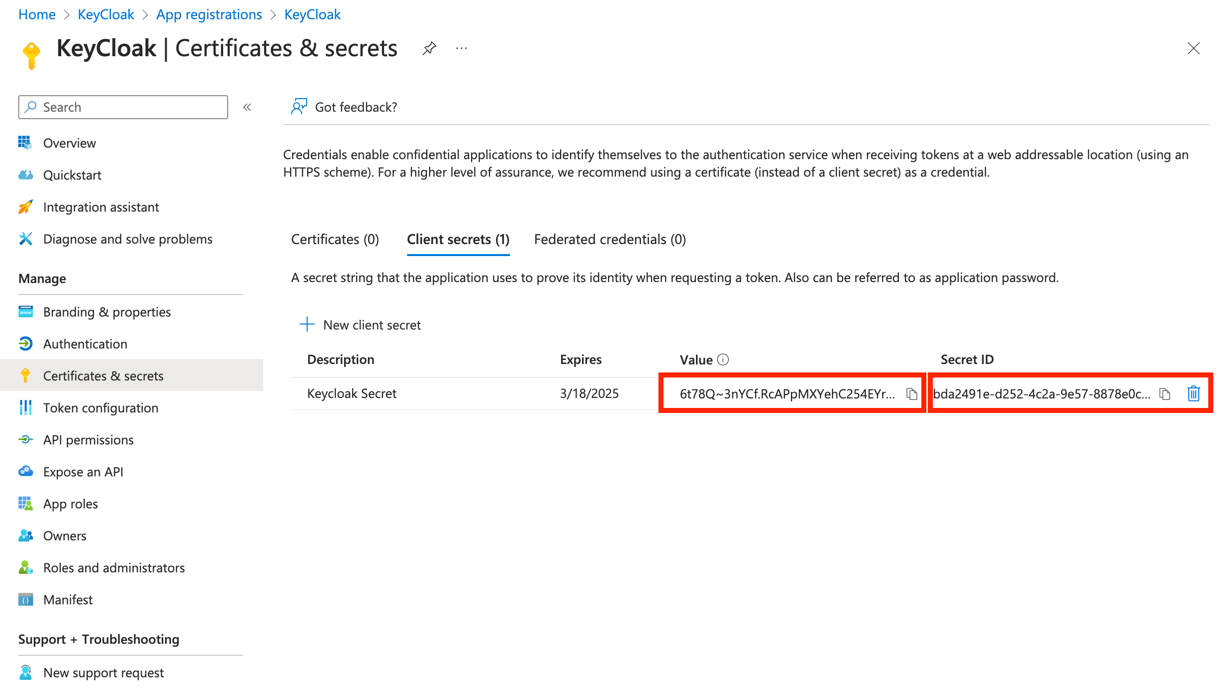

Create a Client Secret for your Application:
- On the left side, navigate to Certificates and secrets. Create a New client secret.
- Add a description for your new secret and set an expiration for it.
- Please save the Value and the Secret ID for later.

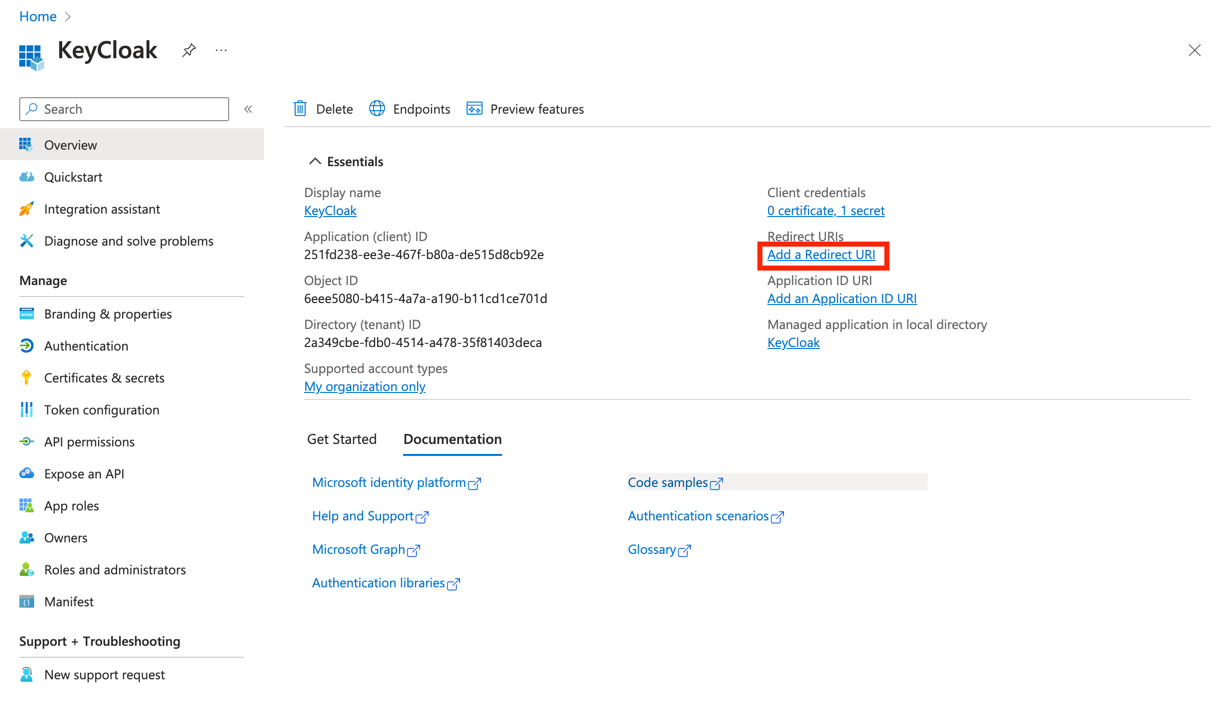

Add the Redirect URI generated from Keycloak to the Azure Application Registration.
- Select Add a Redirect URI

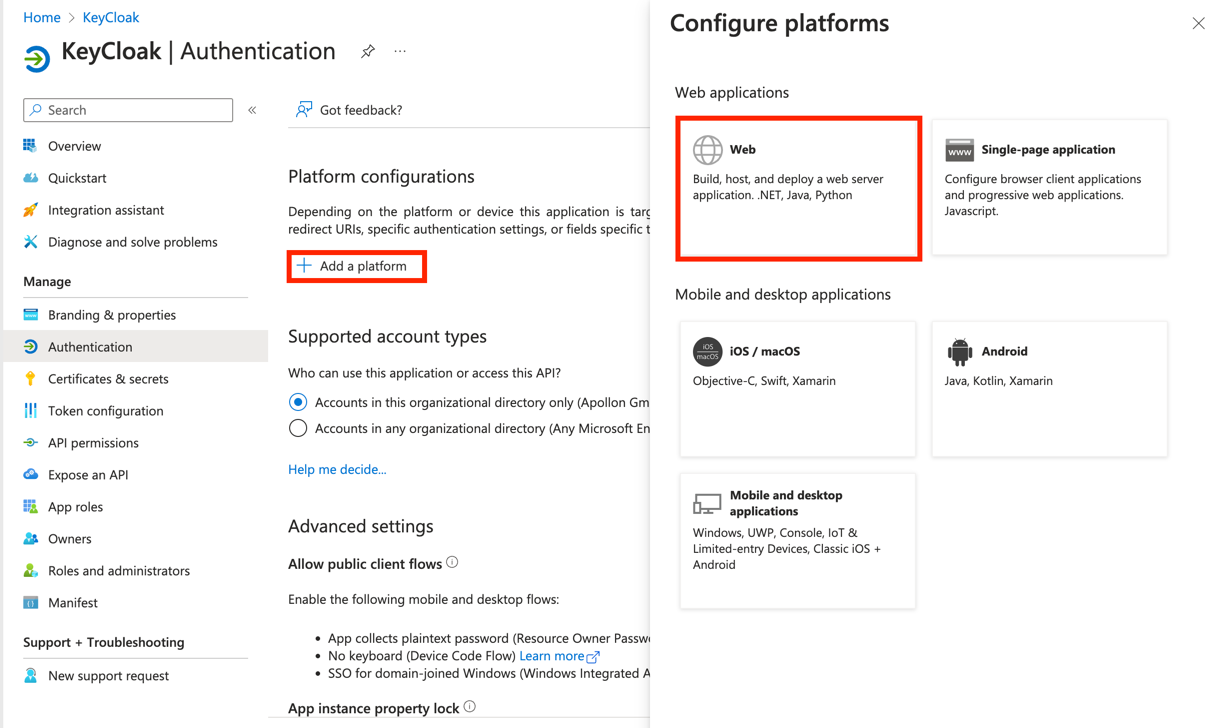

- Select Add a plattform → Web

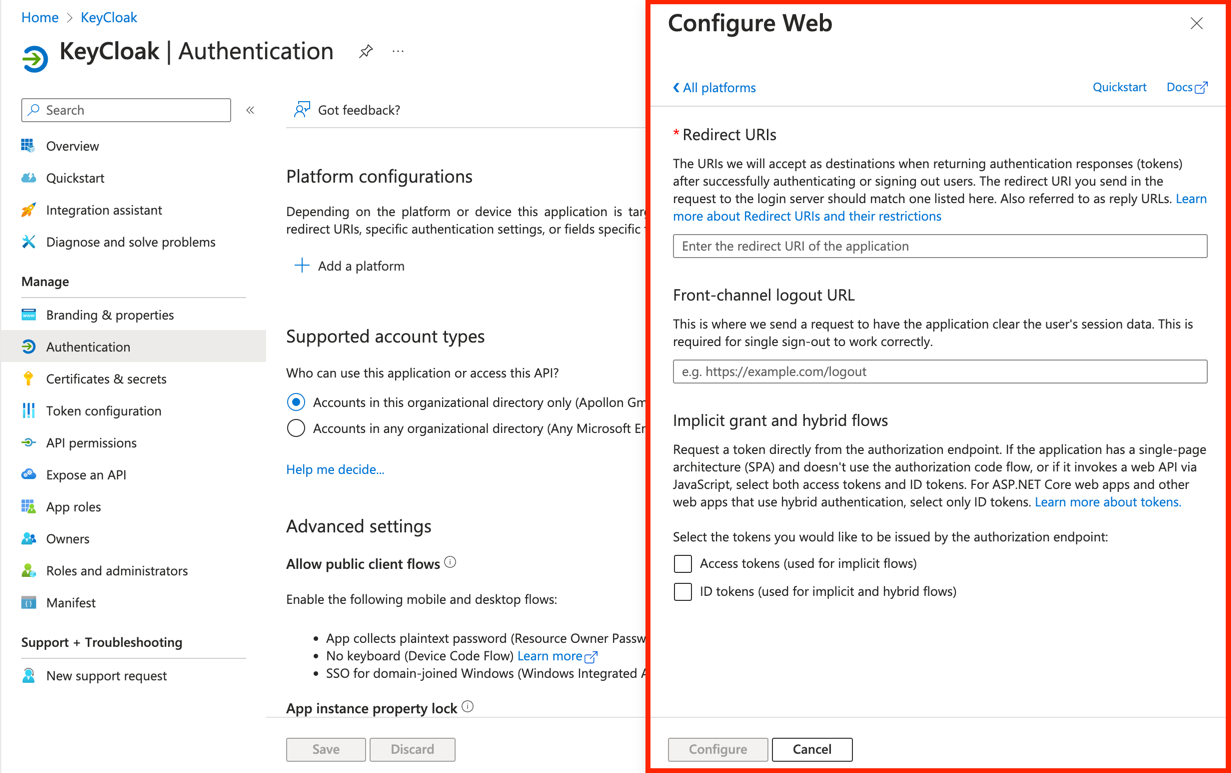

- Add your Redirect URI you saved when configuring your identity provider in Keycloak and paste it into the Redirect URI option for the platform you’re configuring.

Keycloak

Create OpenID Connect v1.0 as an Identity Provider in your Realm
- Log in to the Keycloak admin console and make sure the OMN realm is selected.
- Create Realm and Client in Keycloak Administration Console

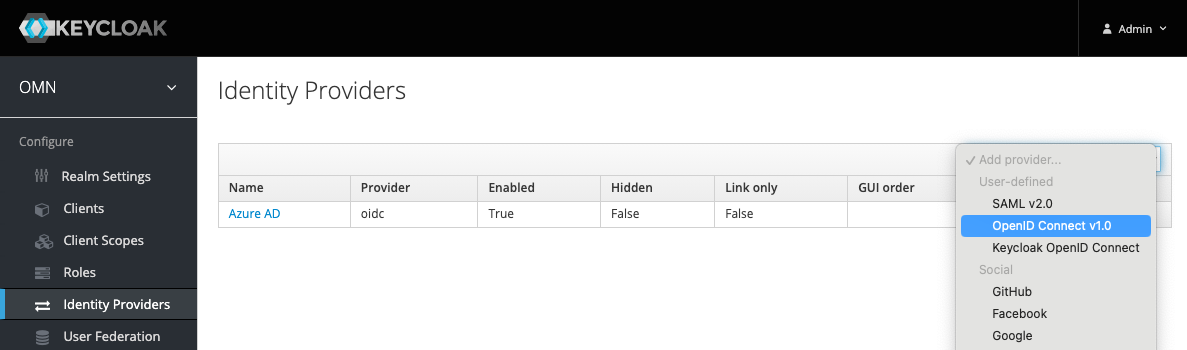

  Figure 1. Create IDP with OpenID Connect Protocol
- Select Identity Providers → Add provider → OpenID Connect v1.0

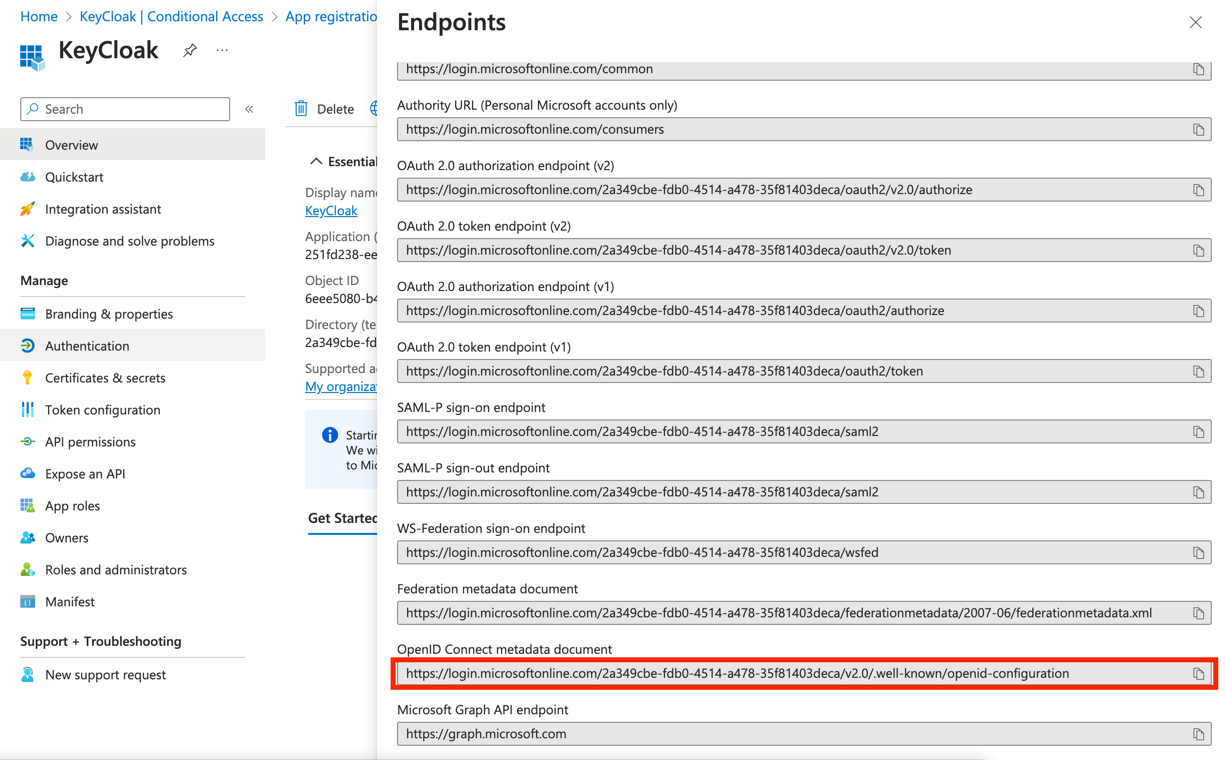

- Under Import External IDP Config you need to add the External link from Entra AAD. For this go to Endpoints and copy the OpenID Connect metadata document link.

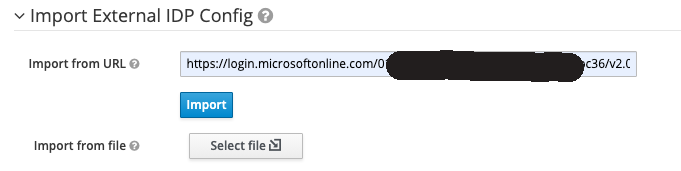

  Figure 2. Import the metadata from IDP URL
Import the IDP configuration from the Azure AD metadata URL (Ask the customer for the metadata URL):
- Fill the field Import from URL with the information you can find here, for example.
- Click on the Import button.
Fill the Alias field with the expected IDP name, e.g. azuread, the Redirect URI field will be filled automatically.
Use the generated Redirect URI to register an application in the Azure AD side for getting the Client ID and Client Secret from Azure AD (Ask the customer for help).
Set Store Tokens to ON so that keycloak could refresh the tokens from IDPs automatically.
Set Backchannel Logout to OFF.
Fill the Client ID and Client Secret fields with the values from the Azure AD application configuration.
Set First Login Flow to OMN First Broker Login
Set Post Login Flow to IDP-PostLogin
Set Client Authentication to Client Secret sent as post
Set Prompt to login
Set Default Scopes to openid profile offline_access
Click on the Save button

Ensure that the refresh token is enabled on the IDP side. Some identity providers, such as Okta, disable refresh tokens by default.

Validation of IDP configuration

To validate the IDP side configuration, you could use the tools like Postman or Curl to get the token from the token endpoint which could be found from the field Token URL in the IDP configuration above. Also replace the client_id, client_secret, username, and password with the values from the IDP.

Query token by Curl

curl --location 'https://login.microsoftonline.com/YOUR_TENANT_ID/oauth2/v2.0/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'client_id=YOUR_CLIENT_ID' \
--data-urlencode 'grant_type=password' \
--data-urlencode 'client_secret=YOUR_CLIENT_SECRET' \
--data-urlencode 'scope=openid profile' \
--data-urlencode 'username=YOUR_USERNAME' \
--data-urlencode 'password=YOUR_PASSWORD'

Query token by Postman

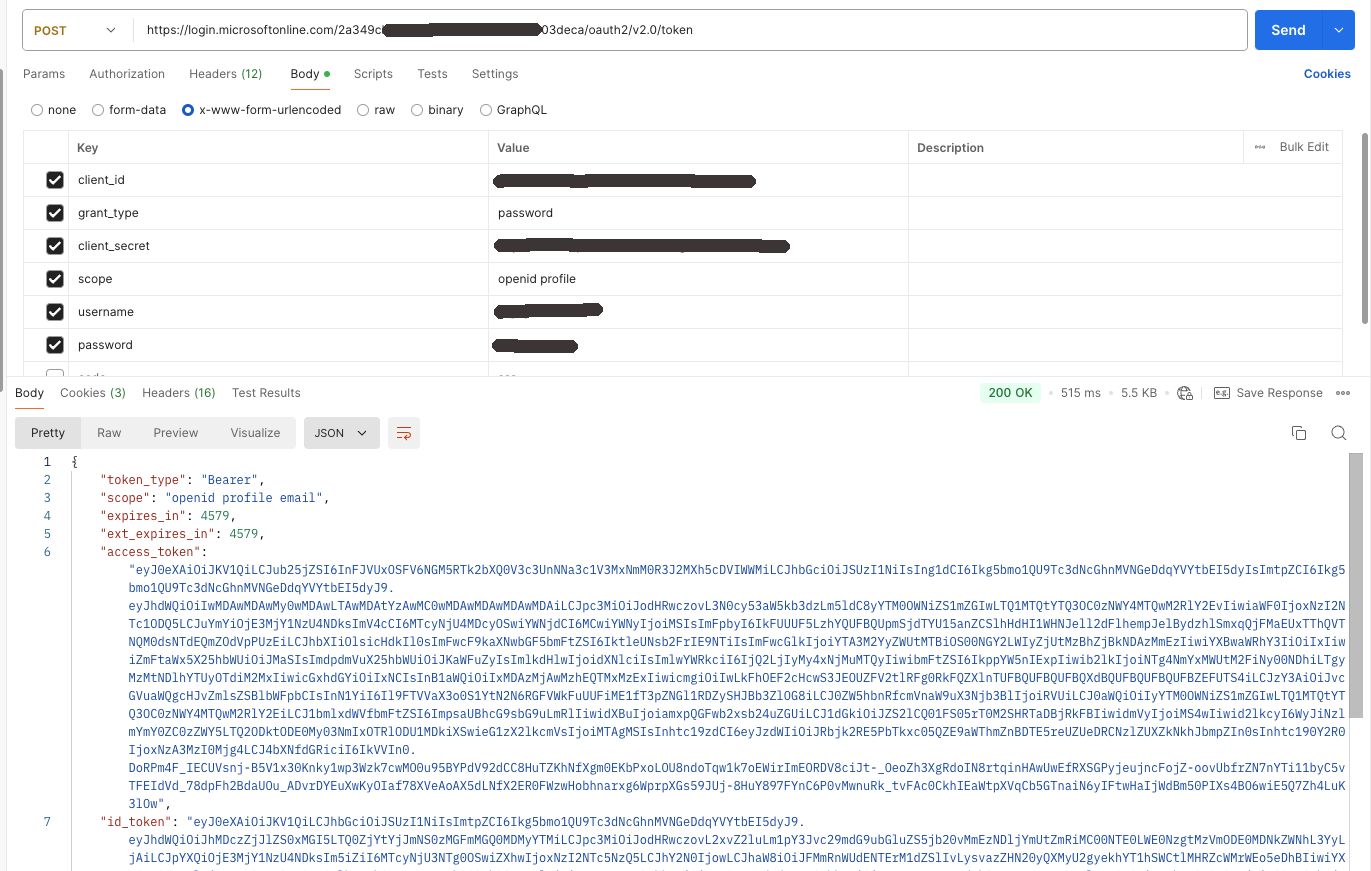

Figure 3. Get IDP Token

Then check the following points:

The access token and ID token should be returned successfully.
The user profile data should be included in the ID token.
The user groups should be included in the ID token.
The login_hint claim should be included in the ID token (optional).

You can use https://jwt.io to decode the ID token and check above mentioned points.

Mapping Activation for OMN Login

Normally in OMN a new created user is not to be activated by default.
In the case of IDP login, the users could be activated automatically by mapping to the built-in role omn-login-role.

Go to the Mappers tab and create a new mapper with the following settings:

Name: omn-login-role-mapper
Sync Mode: Force
Mapper Type: Claim to Role
Claim: groups
⇒ The claim name which provides the user groups from Azure AD
Claim Value: your-target-group-from-azure-ad
⇒ The group name whose members should be activated in OMN automatically.
Role: omn-login-role

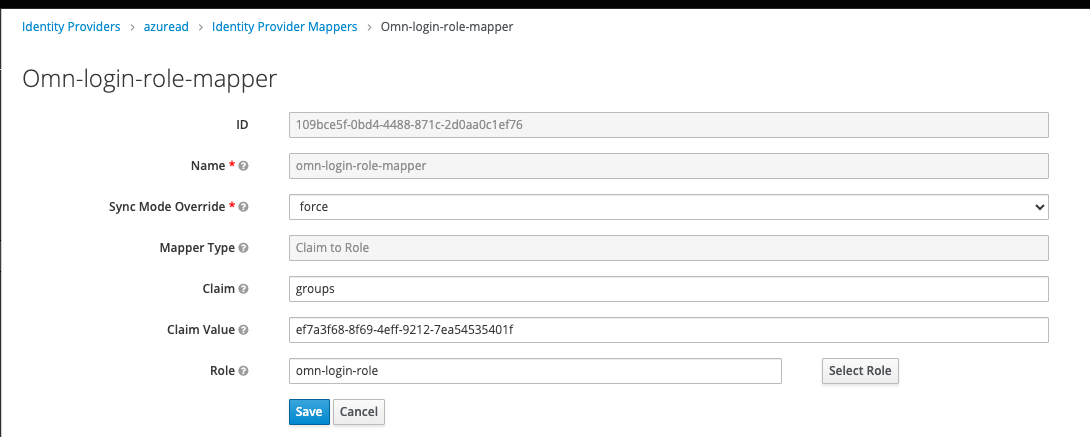

Figure 4. Mapping Activation State

If there are multiple groups in Azure AD which should be activated in OMN, you can create multiple mappers with different Claim Value settings for each group.

After that, all users from the configured groups will be activated automatically and others have to be activated manually by the administrator.

This automatic activation will be only executed at the first IDP login.
After that, the user could be activated or deactivated only by administrator manually.

Mapping IDP User Profile

An OMN user has own profile properties which could be also mapped from the IDP user profile data.
OMN has the following standard profile properties:

userName
firstName
lastName
email
phone
fax
zip
address
city
country
department
company

Keycloak normally does the mapping automatically for the standard claims like username, email, given_name, family_name, etc.
Others, e.g. company, should be mapped manually following the next steps:

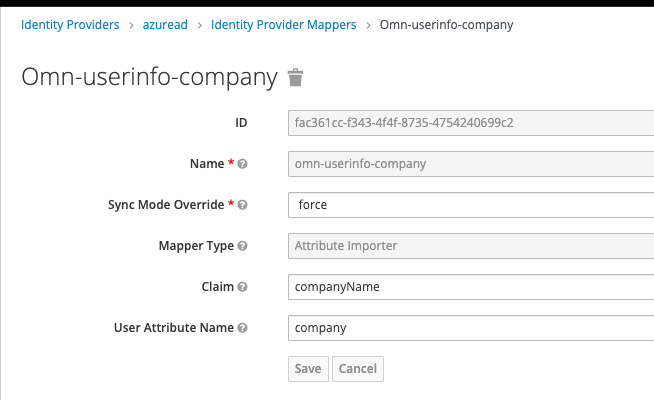

Go to the Mappers tab and create a new mapper with the following settings:

Name: omn-userinfo-company
Sync Mode: Force
Mapper Type: Attribute Importer
Claim: companyName
⇒ The claim name matching the company name from Azure AD
User Attribute Name: company
⇒ The OMN user profile property name from the above properties list

Figure 5. Mapping User Profile

After that, the company property will be filled with the value from the Azure AD user profile. The same could be done for other user profile properties.

The user profile mapping will be executed at each IDP login so that the user profile data will be always up-to-date.

Mapping IDP User Groups

OMN has user groups with different access rights, that could be also mapped from the IDP user groups. For example, the user from the group admin in Azure AD could be mapped to the admin group in OMN.

Before the mapping, the groups should be synchronized from the OMN LDAP into Keycloak.

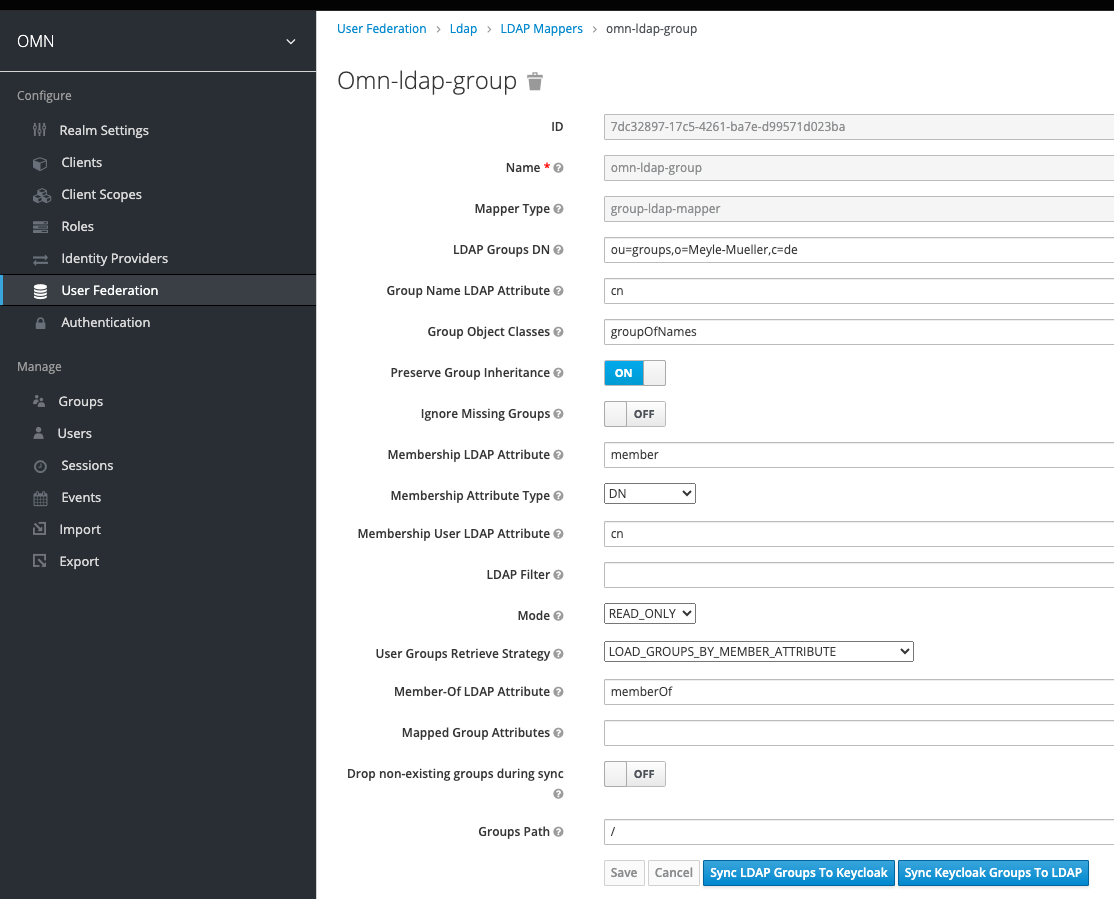

Go to User Federation → omn-ldap → Mappers → omn-ldap-group, and click on Sync LDAP Groups to Keycloak button.

Figure 6. Sync OMN Groups

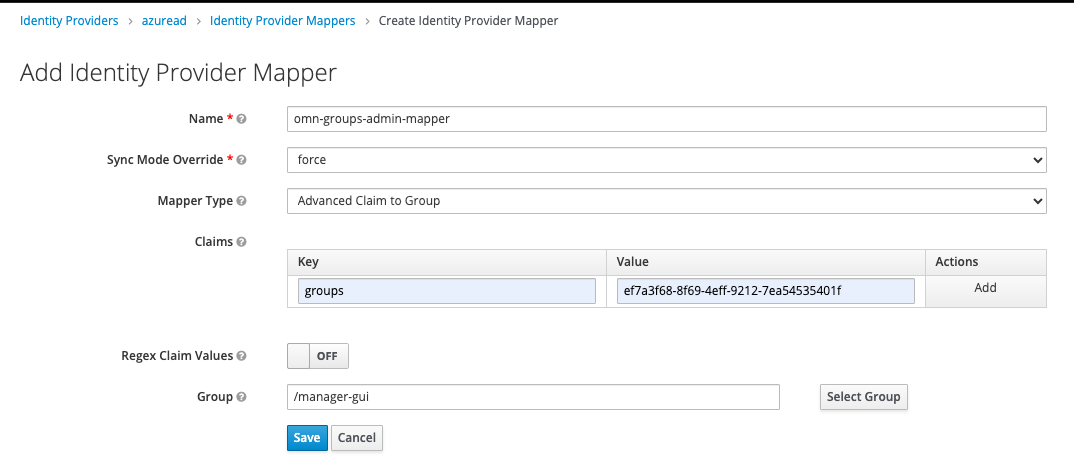

Go to Identity Providers → Azure AD, then open the Mappers tab and create a new mapper with the following settings:

Name: omn-group-admin-mapper
Sync Mode: Force
Mapper Type: Advanced Claim to Group
Claims: ⇒ add a claim key-value pair key: groups ⇒ The claim name which provides the user groups from Azure AD value: admin-IDP ⇒ The IDP group name which needs to be mapped to the OMN group
Group: manager-gui
⇒ Choose the target OMN group by clicking on the Select Group button

The same could be done for other groups.

Figure 7. Mapping Group

Configure ID Token with additional user information (Azure AD)

The following example shows the configuration or additional claims. In this case, we configure the IDP Token endpoint to print the user groups, additionally.

Log in to your admin console and navigate to the Applications section:

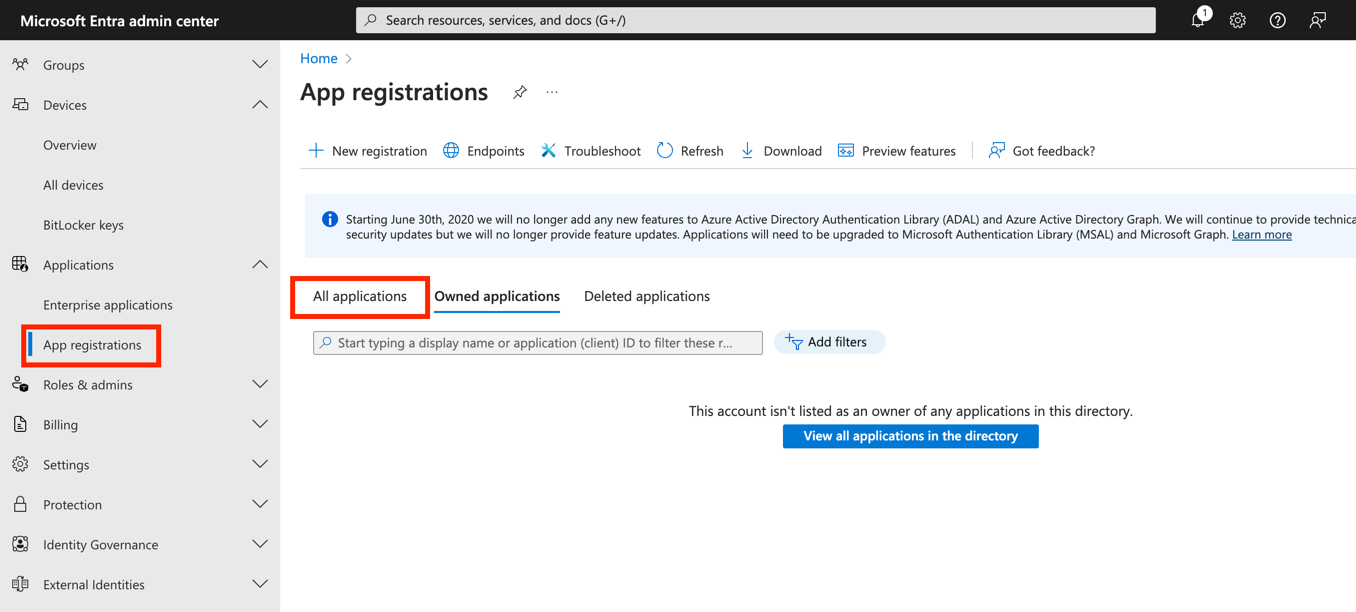

Select Applications → App Registrations → All applications
Select the KeyCloak app instance created previously.

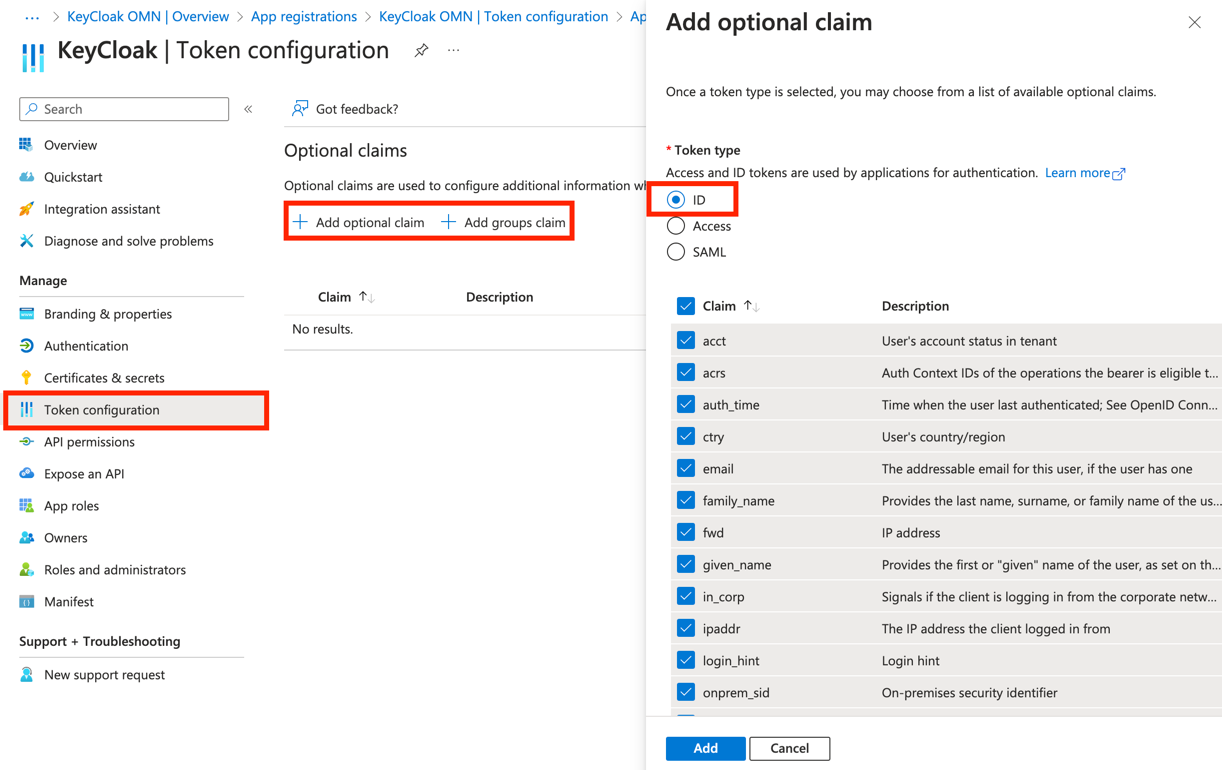

Go to Token configuration → Add optional Claim → ID → Select needed claims, e.g. Claim all and Click Add Button.

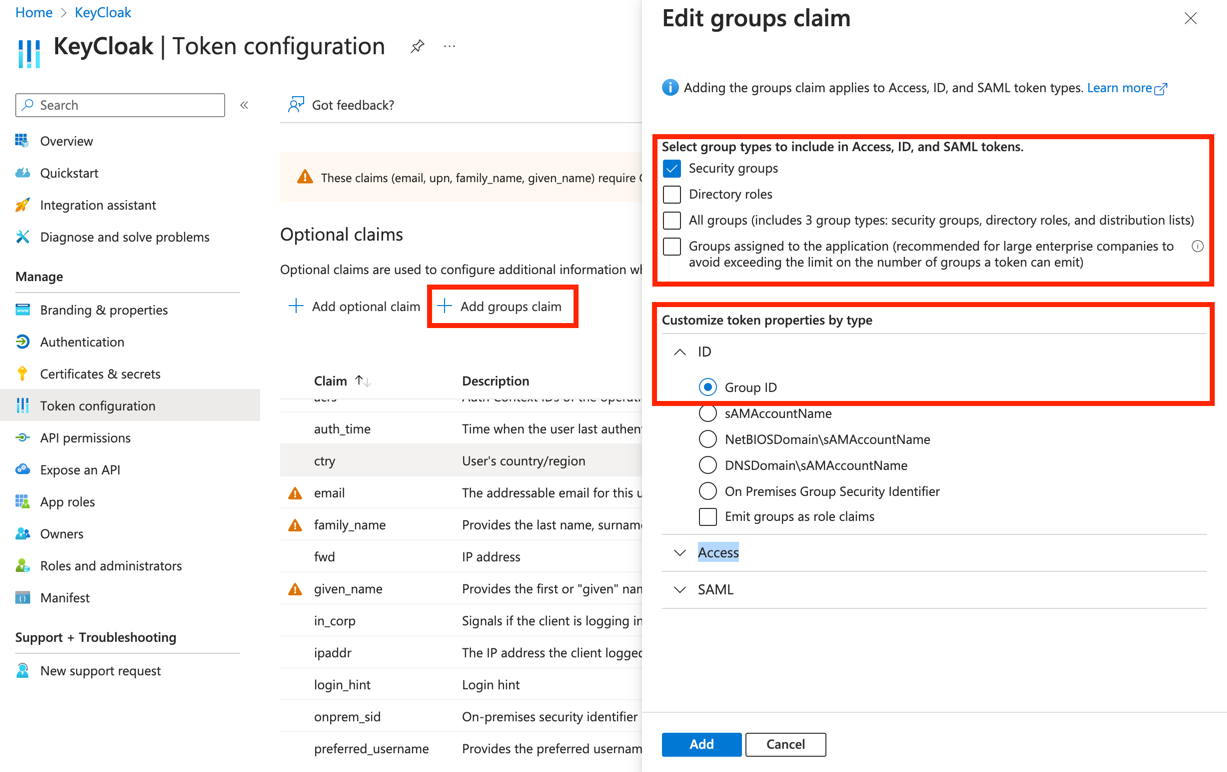

Go to Add groups claim → select e.g. Security groups and the token ID with e.g. Group ID.
Then Click the Add button.

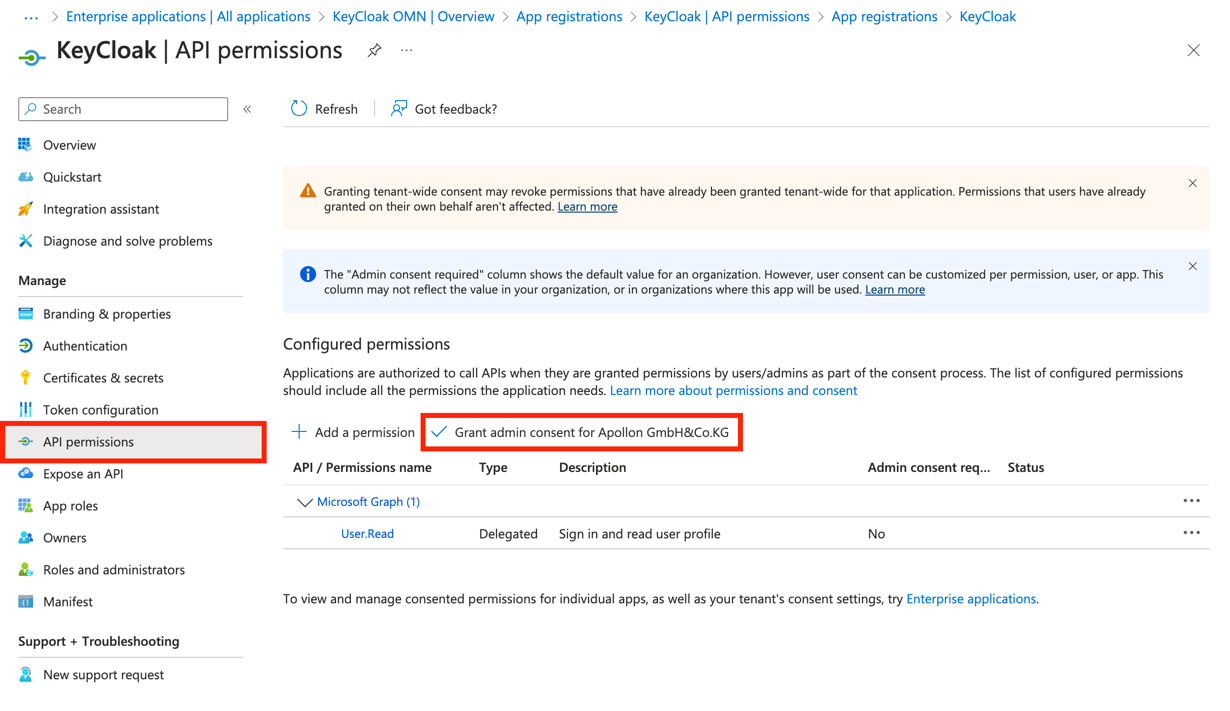

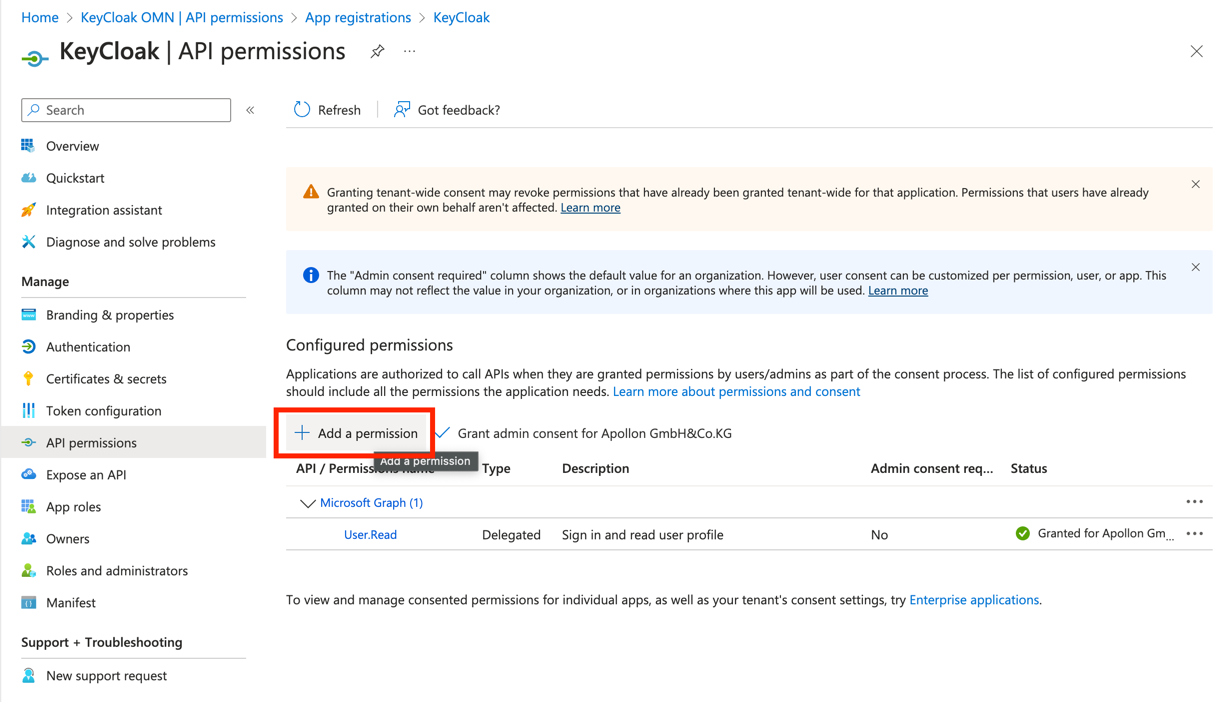

Go to API permissions → Add a permission
Go to Microsoft Graph → add a permission
Go to Microsoft Graph → Delegated permission is selected.

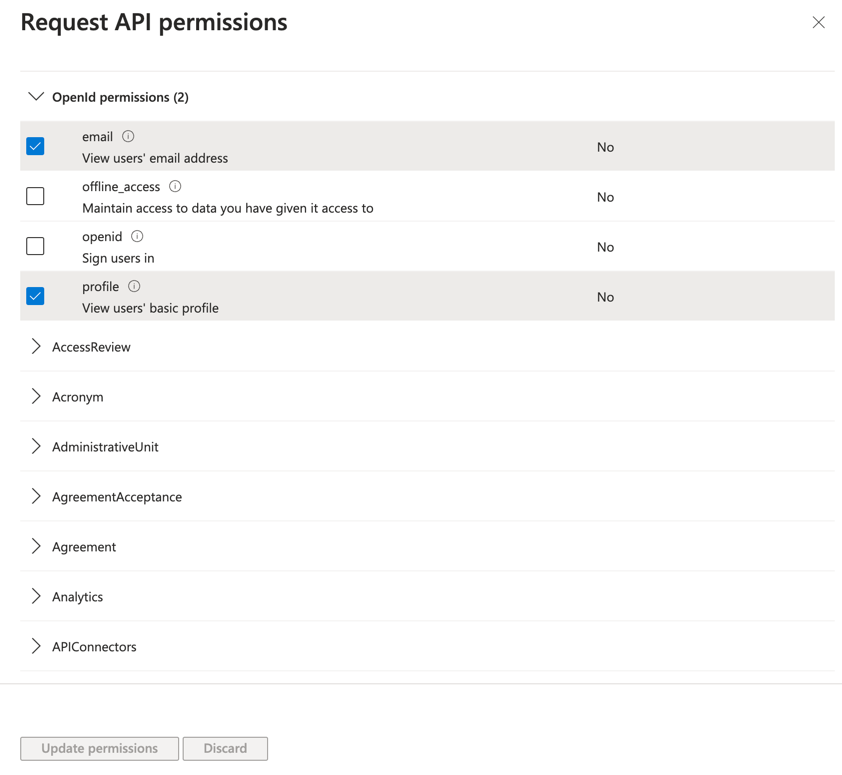

There you need the following permission set:
OpenId permissions: check that email and profile is selected.

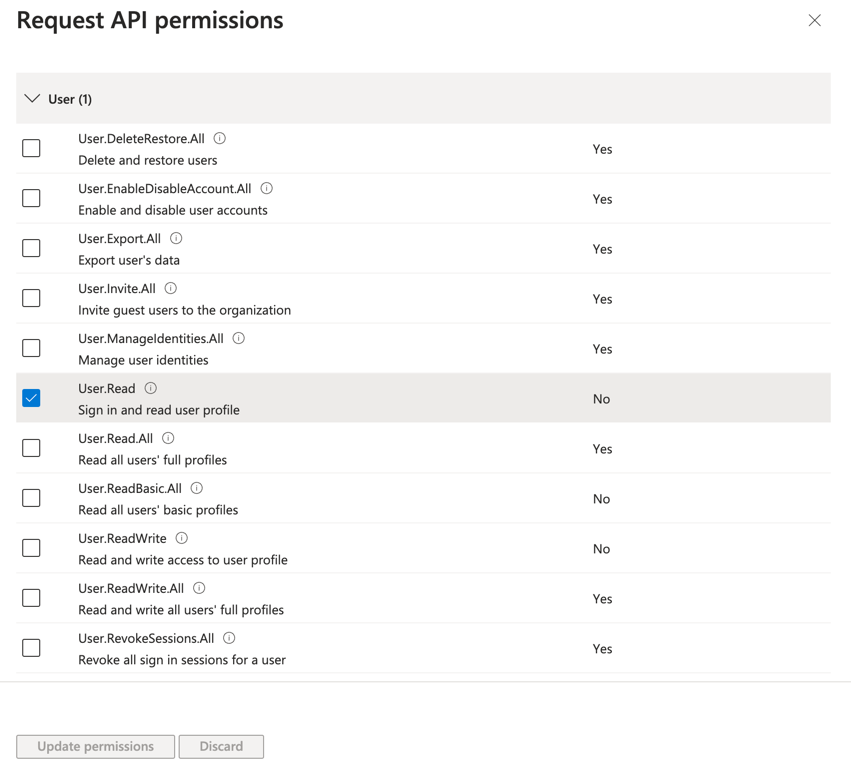

In User check that User.Read is selected.

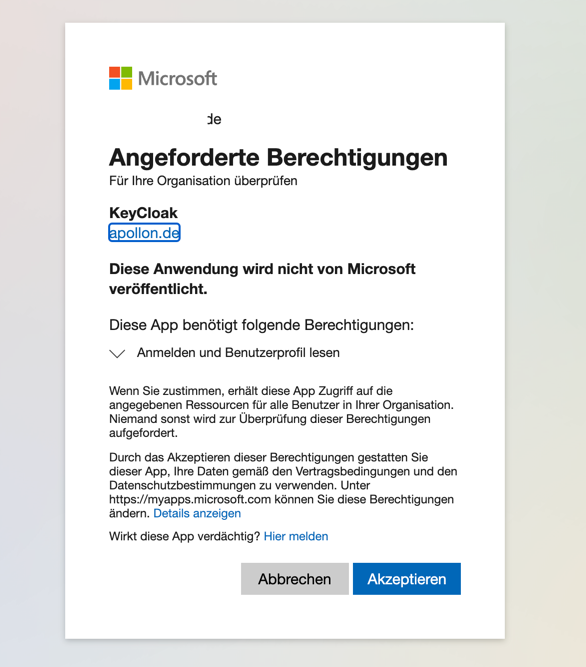

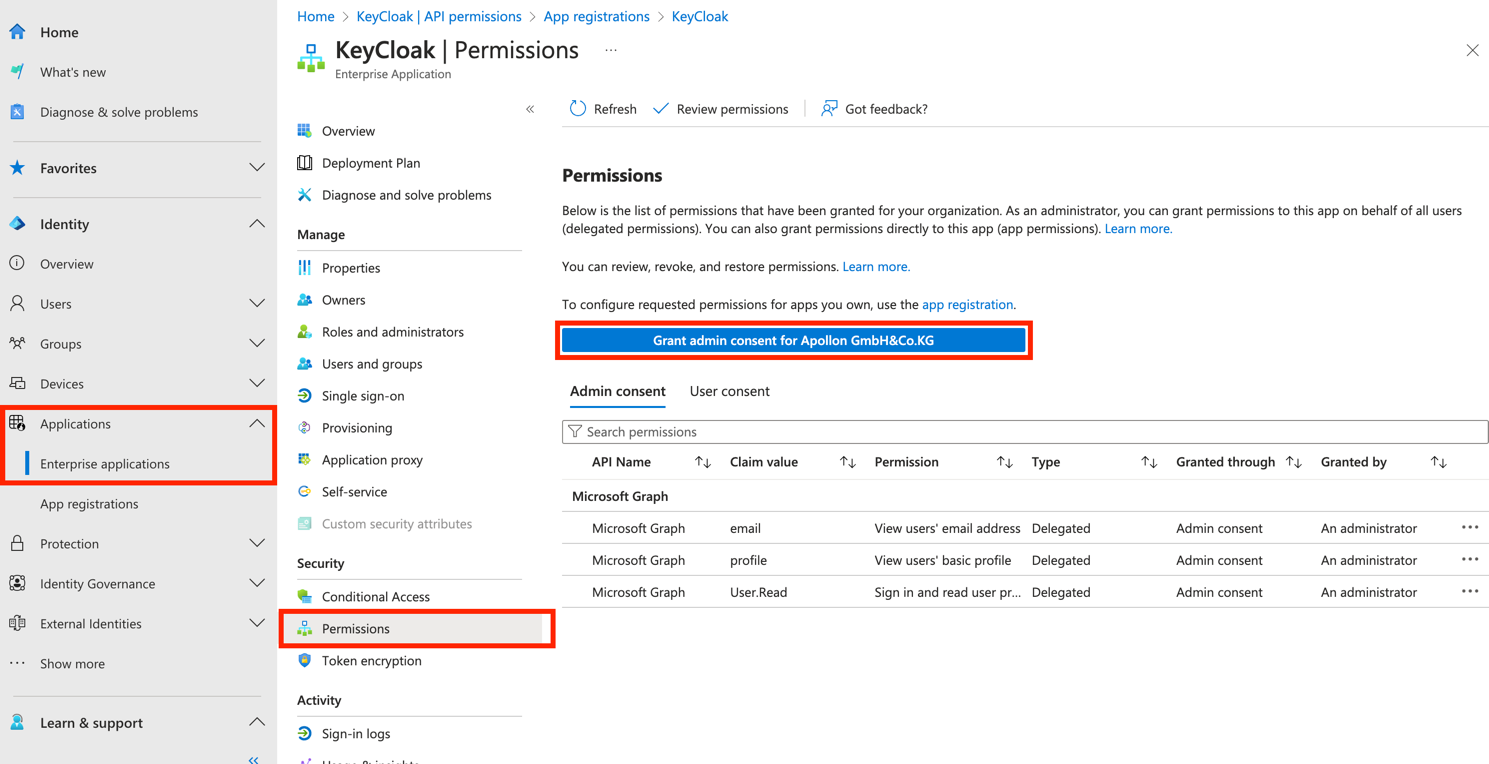

Navigate to Applications→ Enterprise applications → Permissions and Grant the Admin Consent….
Accept the registration.
