provide omn with the icon extension properties from bpmn
Goal
It is possible to see a non-default icon of workflow transitions so that the meaning of transition execution is more clear to the user.
How to set custom icons for transitions in BPMN:
-

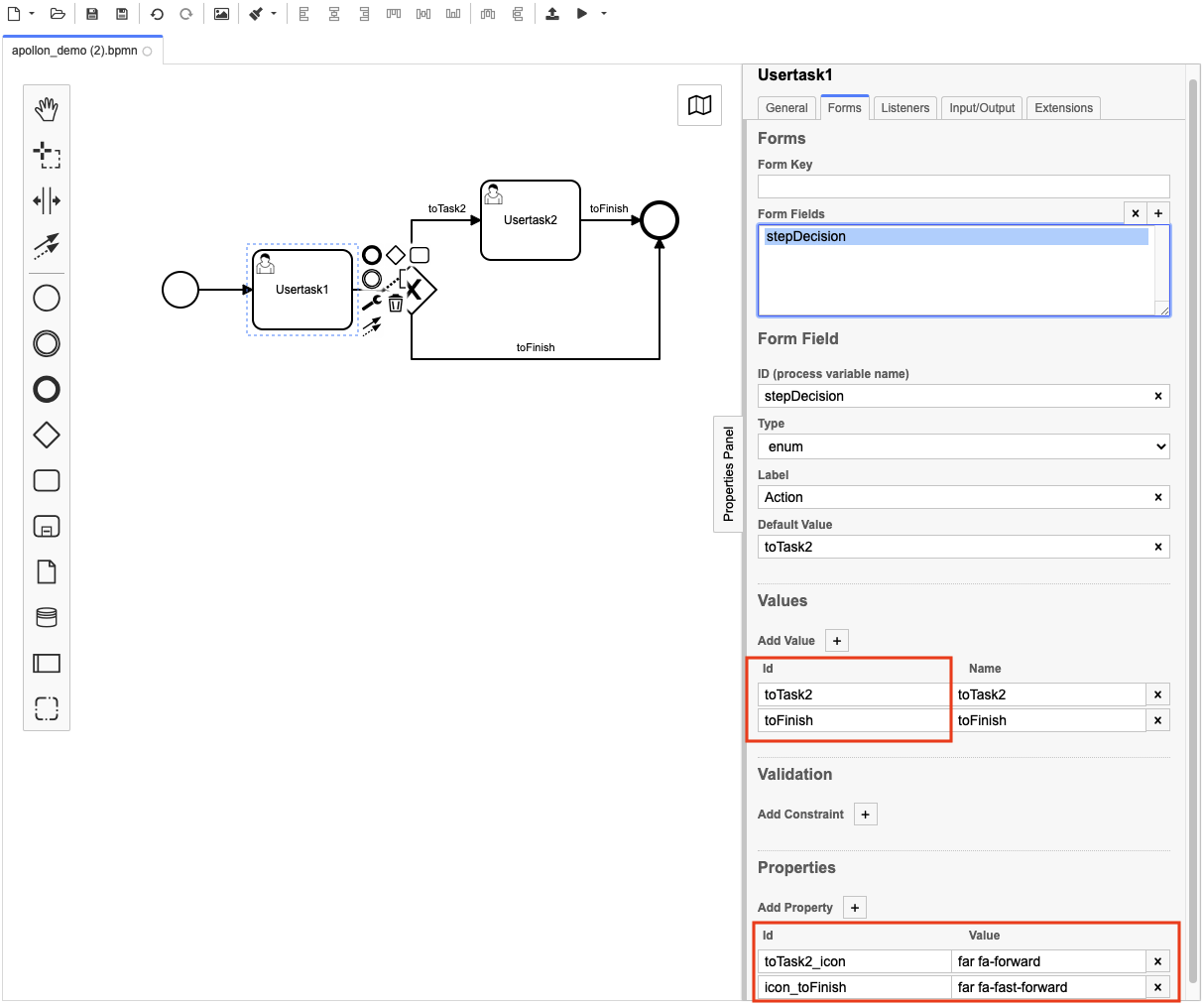

Open the Camunda Modeler and your workflow model.
-
Select a user task and open the "Forms" tab in the Properties Panel on the right side of the modeler.
-
Make sure to have a Form Field configured for your outgoing transition(s) from you task to another BPM element.
-
If not, you need to create a new Form Field (see: Configuration with Camunda and BPMN)
-
-
At the very bottom of the Form Field panel you will find the "Properties" section.
-
If you want to assign a custom icon to a transition, add a new property using the id form the value section above as property id and add the suffix _icon.
-
E.g. task2_icon or icon_task2
-
-
Use your desired FontAwesome icon identifier as value.
-
You can find these identifiers in a Fontawesome browser in the OMN config client.
-
Or use the official fontawesome.com website to browse for icons
-
-

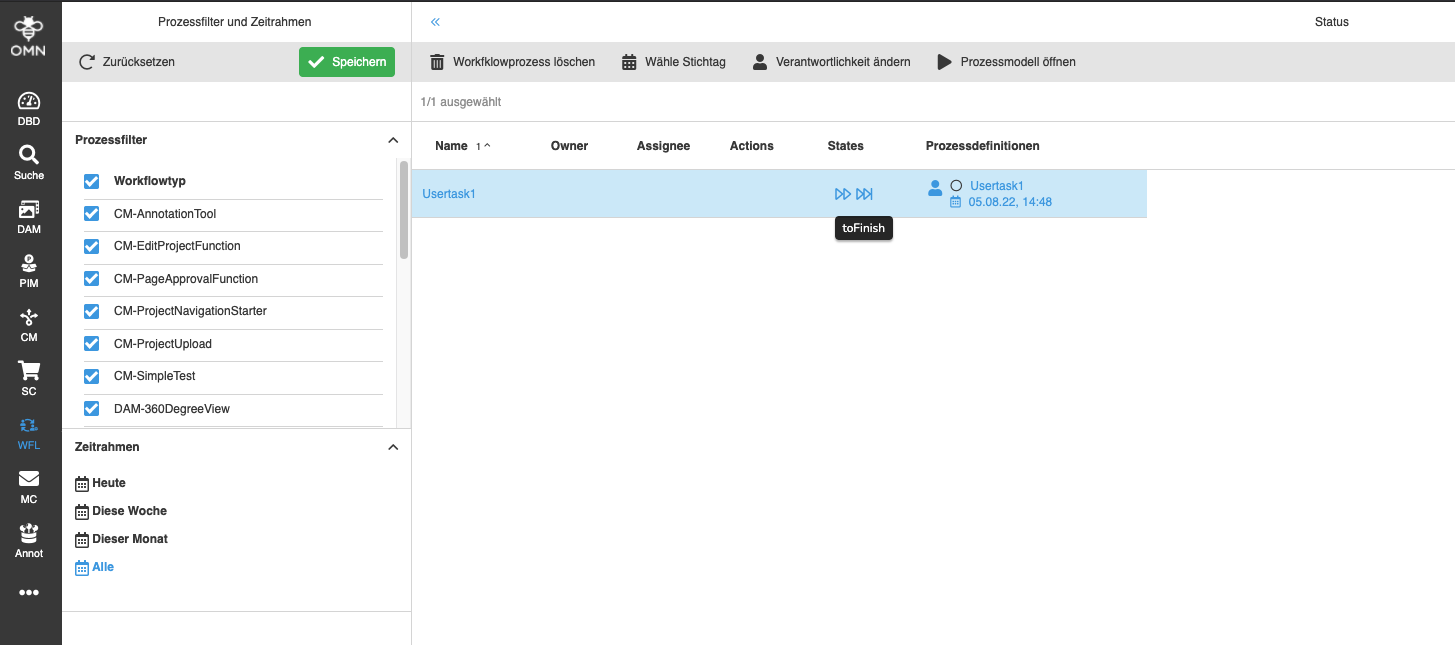

After the BPM has been deployed to the camunda instance and the process has been started via OMN the icons should be visible in the workflow views, such as the WFLStatus overview.
